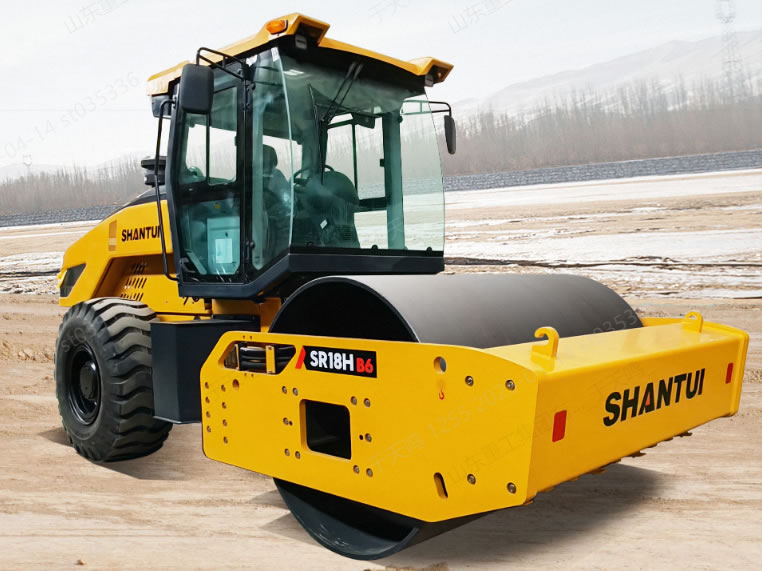

Road roller-SR18H-B6
Content:
| Model | SR18-B6 optical wheel | SR18-B6 convex block | SR18H-B6 optical wheel | SR18H-B6 convex block |
| Engine model | Weichai WP6 | Weichai WP6 | Weichai WP6 | Weichai WP6 |
| Total power (kW) | 129 | 129 | 129 | 129 |
| Tire | 23.1-26-12PR/20.5-25-16PR | 23.1-26-14PR/ | 20.5-25-16PR | |
| Maximum climbing ability | 35% | 30% | 30% | 25% |
| Forward speed (km/h) | 0-5.5/0-9.5 | 0-5.5/0-9.5 | 0-8.8 | 0-8.8 |
| Backward speed (km/h) | 0-5.5/0-9.5 | 0-5.5/0-9.5 | 0-5.5/0-9.5 | 0-5.5/0-9.5 |
| Steering angle | ±33° | ±33° | ±33\ | ±33\ |
| Articulation swing angle | ±11° | ±11° | ±11° | ±11° |
| Minimum turning radius (mm) | 7260 | 7260 | 7500 | 7500 |
| Vibration wheel width (mm) | 2140 | 2140 | 2130 | 2130 |
| Vibration wheel diameter (mm) | 1550 | 1752 | 1550 | 1752 |
| Low frequency (hz) | 35 | 35 | 30 | 30 |
| High frequency (hz) | 29 | 29 | 30 | 30 |
| Large amplitude (mm) | 2.0 | 1.7 | 2.0 | 1.7 |
| Small amplitude (mm) | 1.0 | 0.85 | 1.0 | 0.85 |
| Maximum excitation force (kN) | 347 | 347 | 340 | 340 |
| Minimum excitation force (kN) | 266 | 266 | 170 | 170 |
| Working weight (kg) | 18000 | 19200 | 18200 | 19400 |
| Vibration Wheel Distribution Mass (kg) | 11400 | 12600 | 9200 | 10400 |
| Distribution mass of drive wheels (kg) | 6600 | 6600 | 6600 | 6600 |
| Static line load (N/cm) | 532 | 588 | 431 | 488 |
| Total width (mm) | 2305 | 2305 | 2305 | 2305 |
| Total length (mm) | 6780 | 6780 | 6780 | 6780 |
| Total height (mm) | 3310 | 3310 | 3325 | 3325 |
